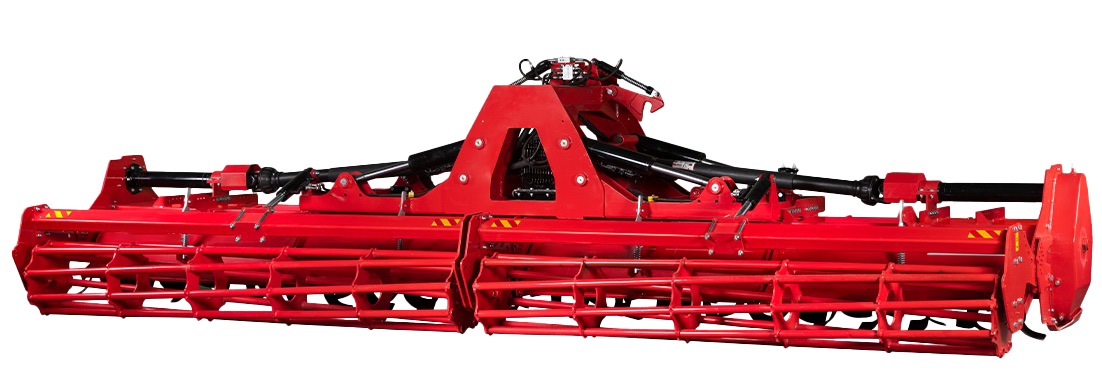

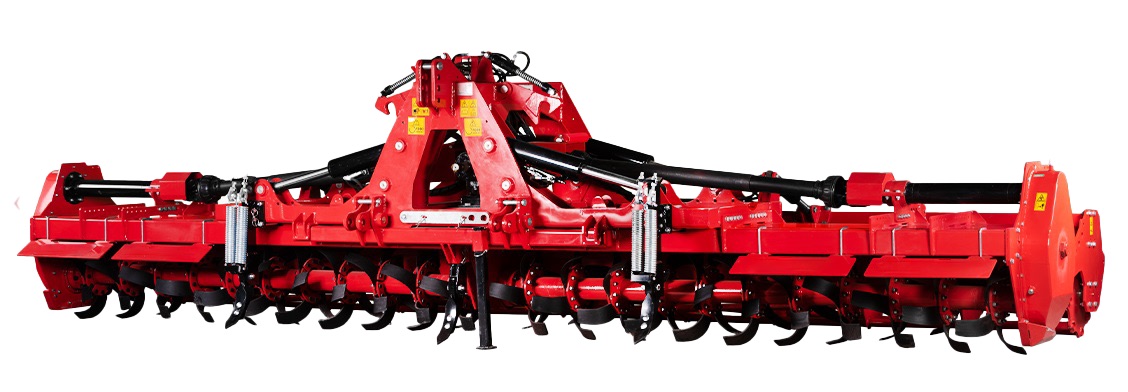

ROTARY TILLER FOLDABLE – Field Type
Rotary Tiller or Rotavator is a tillage machine that mixes the soil from bottom to the surface with the help of horizontally rotating hoes. It is used for preparing seed bed; ventilating the soil; shredding and mixing the plant wastes and weeds in the soil. The roller ensures flatter soil surface while working.
DURABLE, ITALIAN MADE HOES : High Quality, 10mm thick hoes.
PROTECTIVE SHAFT : Protective shaft protects the machine and the tractor from possible damages while working with higher speeds.
STRONG GEAR BOX : PTO Gearbox with 1000 rpm.
ROBUST TRANSMISSION SET : Steel; heat treated side gearbox; can be greased in a single point.
FLEXIBLE BACK COVER : Cover prevents possible damages from stone and hard stuff stucking by flexing.
TEARING SHANKS : Shanks tears the soil up before rotor hoes; assures better pulvarization.
WORKING HEIGHT ADJUSTMENT : Roller height can be adjusted from two sides of the machine.
Tillage machine that fully crumbles the soil; it maximizes seeds touch to the soil.
Since it turnovers the soil; it causes mixing the plant wastes into soil homogeneously.
Special blade angles enable tilling with faster speed even on the hard clods.
Rippers in front of the machine ensures easier tillage even in harder soils.
STANDARD EQUIPMENT:
Universal 3-point CAT II Linkage
1 3/8’’ Z6 Spline PTO Protective Shaft
1000 rpm gearbox speed provides 258 rotor speed
10 mm thick high quality blades
Cage Roller
Hydraulic Roller Adjustment Kit
Transmission Set with Robust Gears
3 front rigid shanks
Removable CE safety guards
120-132 Blades; 6 blades per flange; 3 blades on side flanges.
| ROTARY TILLER FOLDING - Field Type | |||||||
| MODEL NO | HOE QUANTITY | RIP NUMBER | WORKING WIDTH | TOTAL WIDTH | ROAD WIDTH | NEEDED POWER | WEIGHT |
| pcs | pcs | cm | cm | cm | Hp | Kg | |
| RT-FSF-5300 | 120 | 3 | 520 | 560 | 240 | 180-300 | 3062 |
| RT-FSF-5800 | 132 | 3 | 570 | 610 | 240 | 220-300 | 3196 |
