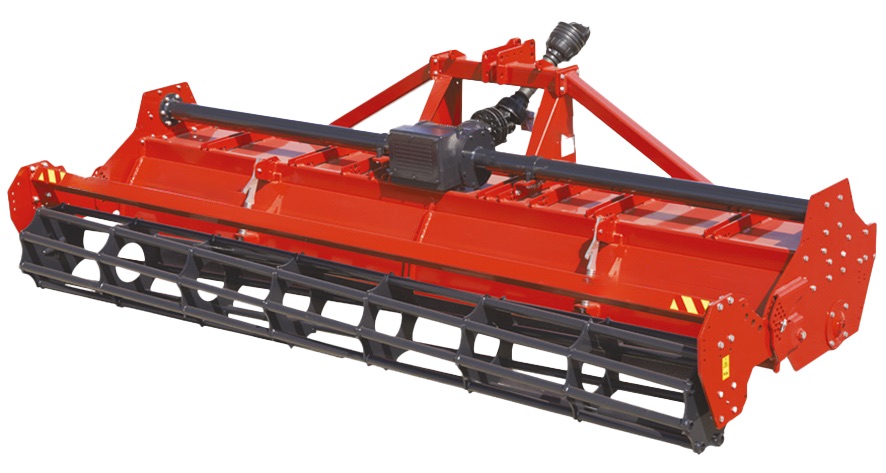

ROTARY TILLER HEAVY DUTY – Field Type
Rotary Tiller or Rotavator is a tillage machine that mixes the soil from bottom to the surface with the help of horizontally rotating hoes. It is used for preparing seed bed; ventilating the soil; shredding and mixing the plant wastes and weeds in the soil. The roller ensures flatter soil surface while working.
DURABLE, ITALIAN MADE HOES : High Quality; 8mm thick hoes.
PROTECTIVE SHAFT : Protective shaft protects the machine and the tractor from possible damages while working with higher speeds.
4 SPEED; STRONG GEAR BOX : PTO Gearbox with 540-750-1000 rpm 4 rotor speeds can be adjusted with exchanging gears.
ROBUST TRANSMISSION SET : Steel; heat treated side gearbox; can be greased in a single point.
FLEXIBLE BACK COVER : Cover prevents possible damages from stone and hard stuff stucking by flexing.
TEARING SHANKS : Shanks tears the soil up before rotor hoes; assures better pulvarization.
WORKING HEIGHT ADJUSTMENT : Roller height can be adjusted from two sides of the machine.
Tillage machine that fully crumbles the soil; it maximizes seeds touch to the soil.
Since it turnovers the soil; it causes mixing the plant wastes into soil homogeneously.
Special blade angles enable tilling with faster speed even on the hard clods.
Rippers in front of the machine ensures easier tillage even in harder soils.
STANDARD EQUIPMENT:
Universal 3-point CAT II Linkage
1 3/8’’ Z6 Spline PTO Protective Shaft
540-750-1000 rpm Gearbox provides min150-max325 Rotor Speed
8 mm thick high quality blades
Cage Roller
Roller Adjustment Kit
Transmission Set with Robust Gears
6 Rippers
Removable CE Safety Guards
78-84-90 blades; 6 blades per flange; 3 blades on side flanges.
ROTARY TILLER HEAVY DUTY – Field Type | |||||||
MODEL NO | HOE QUANTITY | RIP NUMBER | CULTIVATION DEPTH | WORKING WIDTH | TOTAL WIDTH | NEEDED POWER | WEIGHT |
pcs | pcs | cm | cm | cm | Hp | Kg | |
RT-FH-3400 | 78 | 6 | 27 | 335 | 355 | 110-160 | 1324 |
RT-FH-3650 | 84 | 6 | 27 | 360 | 380 | 120-160 | 1689 |
RT-FH-3900 | 90 | 6 | 27 | 385 | 405 | 130-160 | 1760 |
RT-FH-4300 (*) | 96 | 2 | 27 | 420 | 455 | 150-220 | 1850 |
RT-FH-4800 (*) | 108 | 2 | 27 | 470 | 505 | 160-220 | 2000 |
RT-FH-5300 (*) | 120 | 2 | 27 | 520 | 555 | 180-300 | 2150 |
RT-FH-5800 (*) | 132 | 2 | 27 | 570 | 605 | 220-300 | 2300 |
(*)Works only with 1000 rpm
(*)Rotor speed 250 rpm
(*)Doule driven reinforced transmission group
